Installation Example

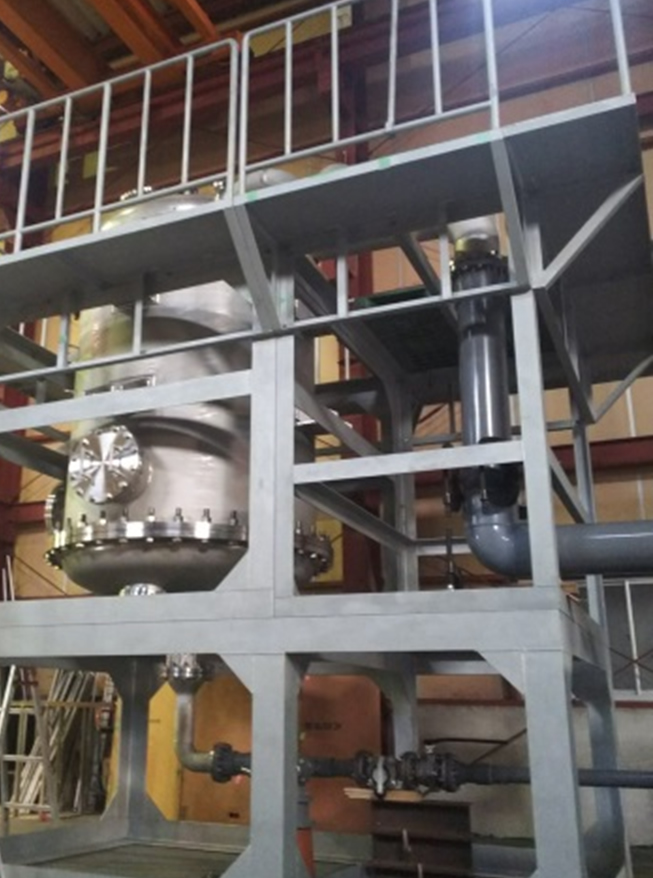

Ultra-Large sized equipment

AC column Amount of AC Footprint
Φ1500 3m³/1 unit W 4,500mm　D 3,000mm　H4,300mm

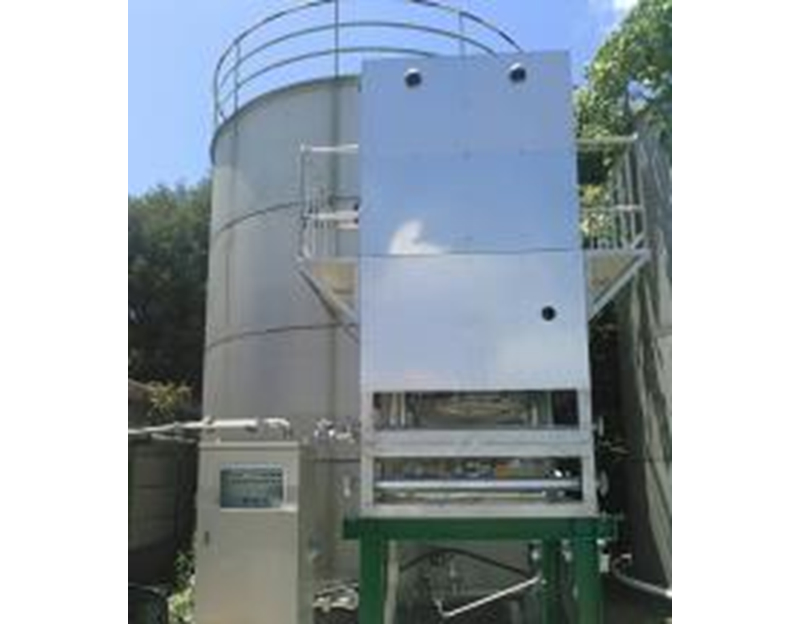

Large sized equipment

Case) At the membrane manufacturing factory
Amount of wastewater AC column Amount of AC Footprint
1000m³/day Φ900
5 units		 1.2m³/1 unit
Total 6m³		 W 9,200mm　D 1,800mm　H 5,100mm
W 6,500mm　D 1,800mm　H 5,100mm

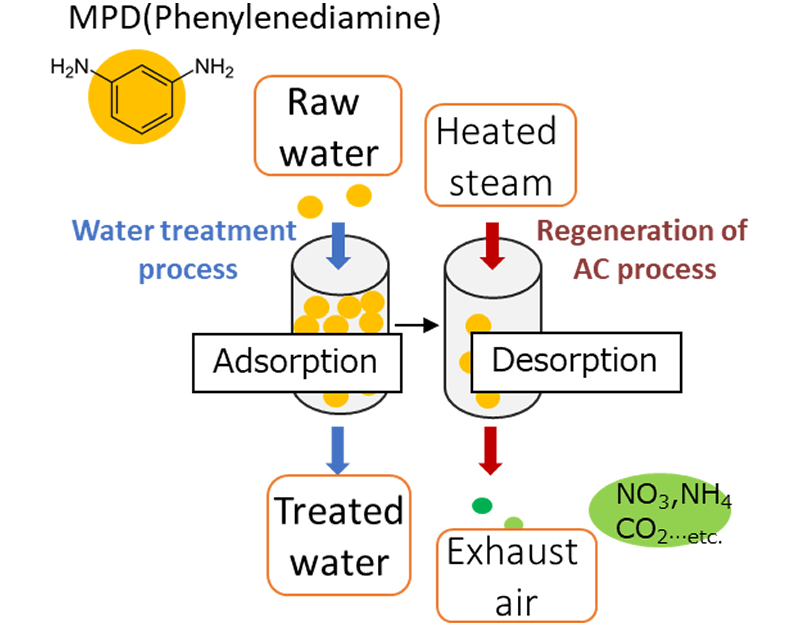

Wastewater containing MPD
Item Raw Treated Exhaust air
MPD (mg/L) 3 N/D N/D

MPD is thermally decomposed by heated steam at regeneration process.

Case) At the chemical factory
Amount of wastewater AC column Amount of AC Footprint
240m³/day Φ900
2 units		 1.3m³/1 unit
Total 2.6m³		 W 7,700mm　D 1,800mm　H 5,500mm

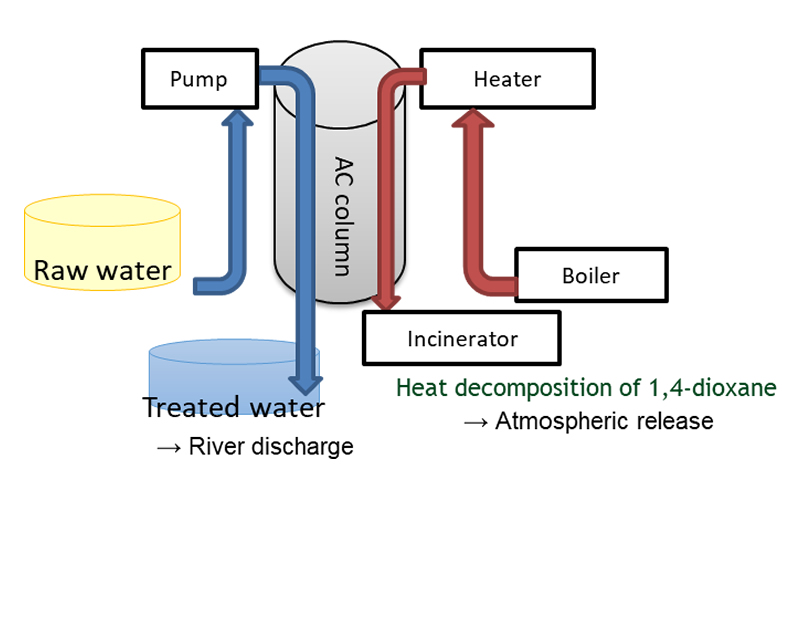

Wastewater containing 1,4-dioxane
Item Raw Treated
TOC (mg/L) ca.130 ca. 90
1,4-dioxane (mg/L) ca. 30 0.04

Regulation value of wastewater is less than 0.5 mg/L

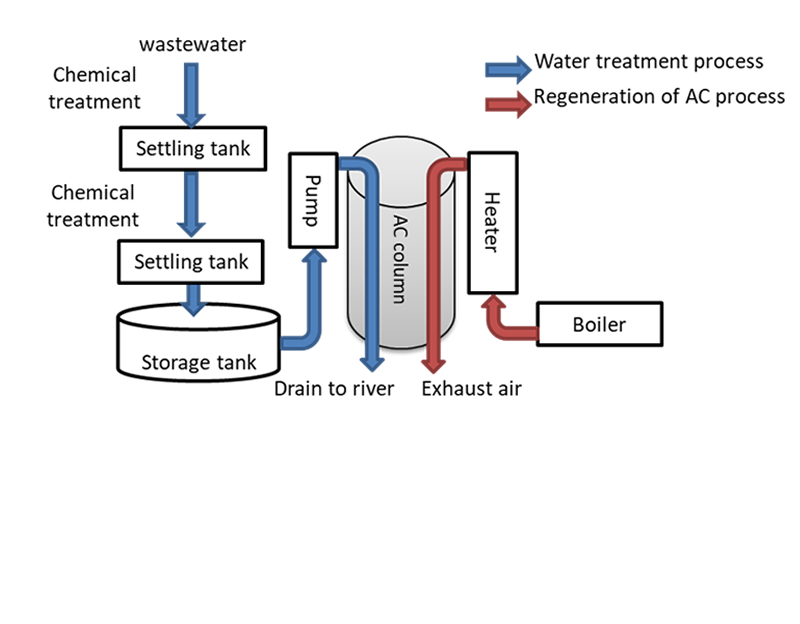

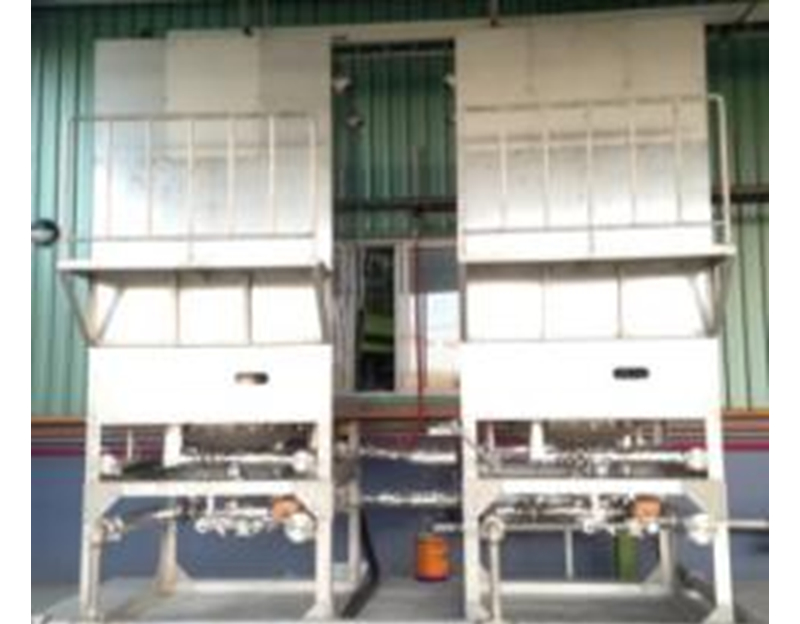

Case) At the factory in Taiwan
Amount of wastewater AC column Amount of AC Footprint
120m³/day Φ900
2 units		 1m³/1 unit
Total 2m³		 W 4,050mm　D 2,600mm　H4,000mm
Item Raw Treated
COD (mg/L) Over 100 Less than20

Below regulation value of draining to river

Middle sized equipment

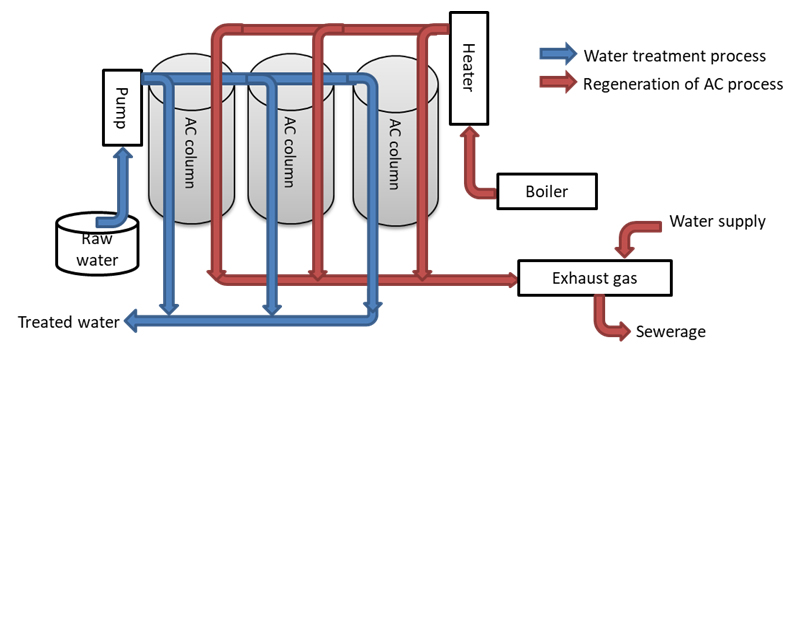

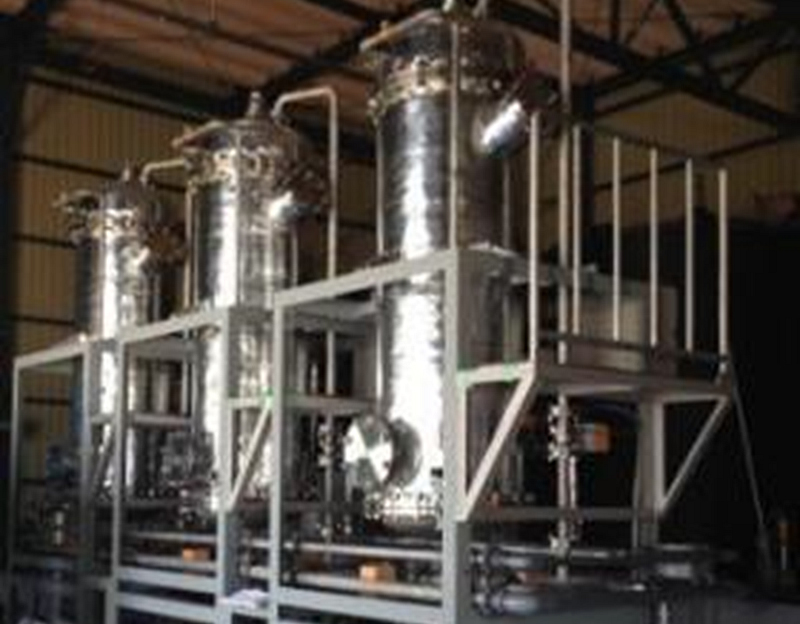

Case) At the factory of precious metal products
Amount of wastewater AC column Amount of AC Footprint
50m³/day Φ600
3units		 375L/ 1 unit
Total 1.125L		 W 4,900mm D 1,200mm H 3,800mm
Item Raw Treated
BOD (mg/L) ~300 Less than120
Extract with n-hexane(mg/L) ~15 Less than 5

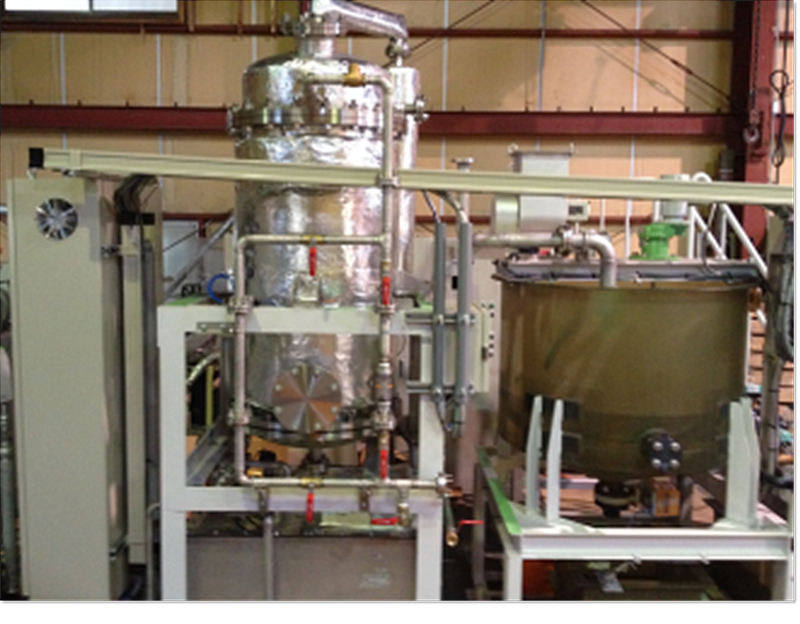

Case) At the factory of ceramic products

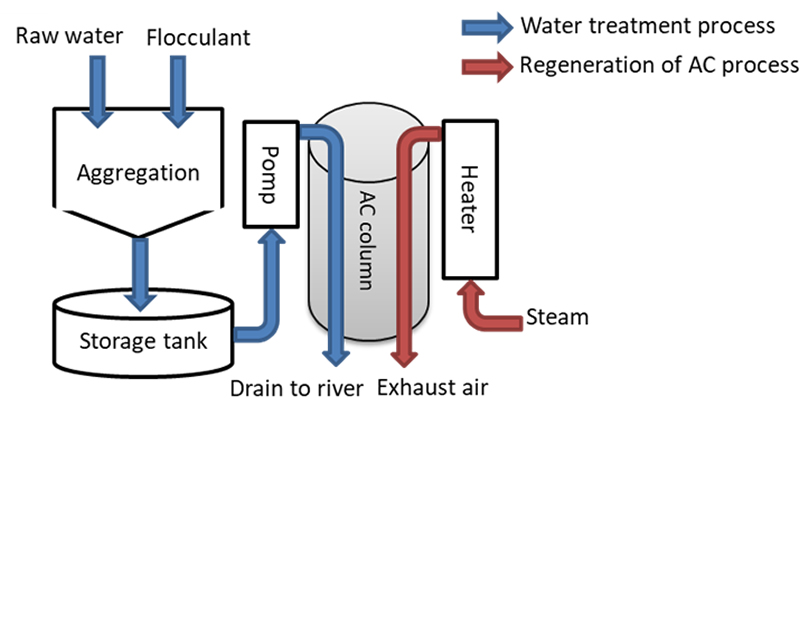

Pre-treatment Amount of wastewater AC column Amount of AC Footprint
Aggregation Removal of turbidity 10 % Reduction of COD 2m³/week Φ600
1 unit		 310L/unit W6,000mm D 1,500mm H 2,900mm
Item Raw Treated
COD(mg/L) ≈20,000 Less than 100

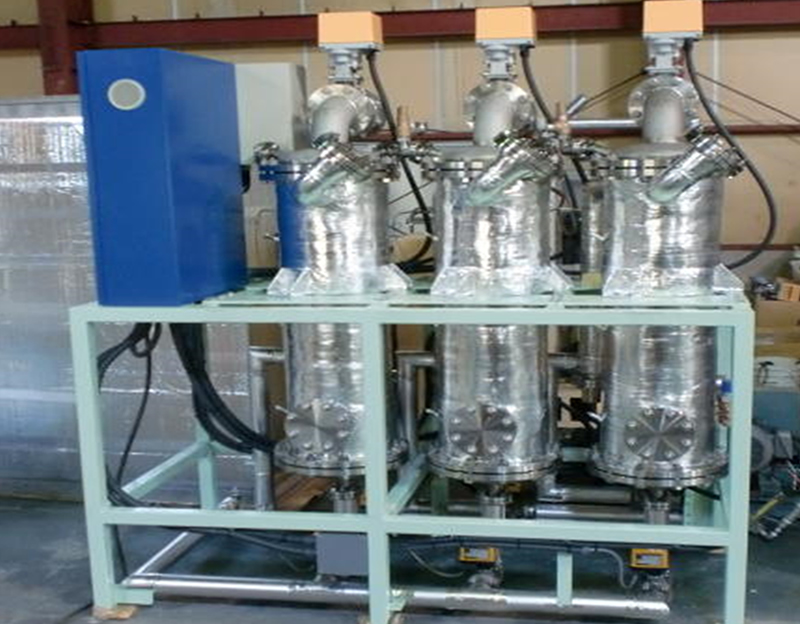

Small sized equipment

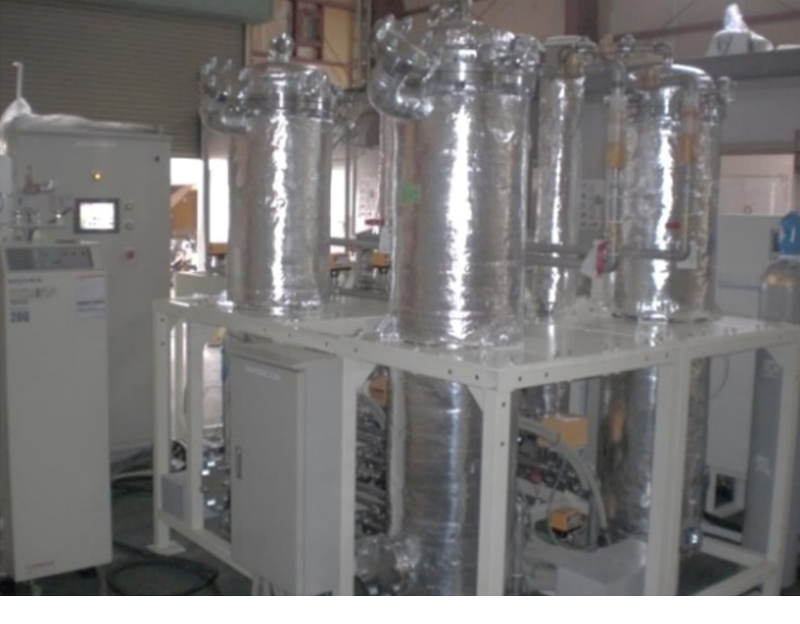

Case) At the pharmaceutical factory

  • Screen of Touch panel
Amount of wastewater AC column Amount of AC Footprint
50m³/day Φ300
6 units		 70L /unit
Total 420L		 W3,600mm D 3,250mm Ｈ 2,180mm
Wastewater containing surfactant
Items Raw Treated
BOD (mg/L) ca. 20 Less than5
COD (mg/L) ca. 20 Less than5
Case) At the chemical factory
Amount of wastewater AC column Amount of AC Footprint
30 Nm³/min Φ300
3units		 35L/ unit
Total 105L		 W 3,030mm D 2,150mm H 2,280mm

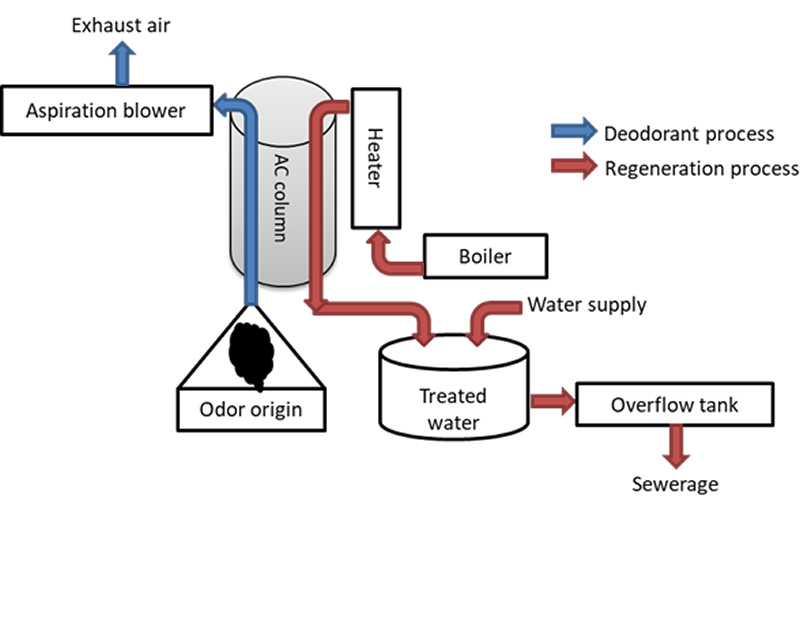

Exhaust gas containing Methyl methacrylate
Item Raw Treated
Methyl methacrylate(mg/L) 489 3

Deodorizing to a level that smell does not be felt.

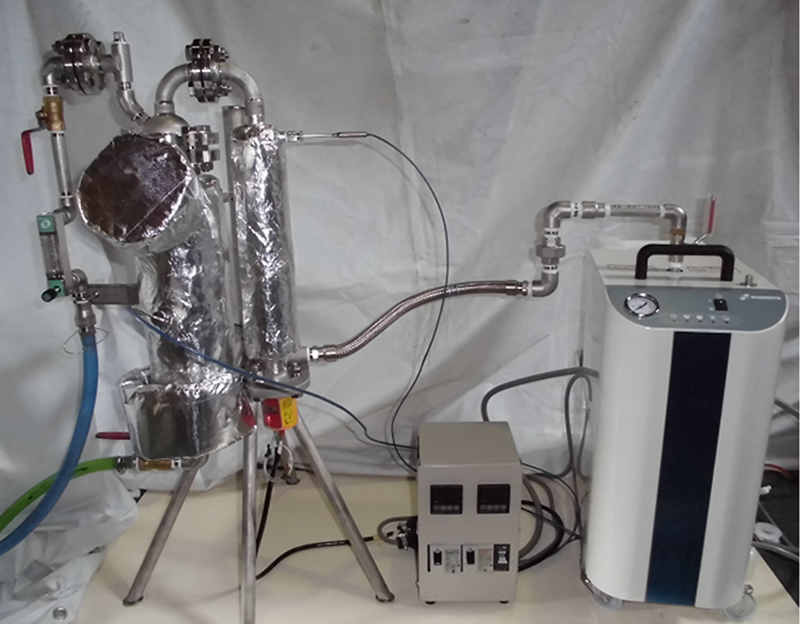

Desktop sized equipment

  • Customers can try this type of equipment as a demonstration one in the actual situation to try its performance and ease of use before purchase.
Flowrate Diameter of AC column Amount of AC Footprint
5 L/h Φ50 0.5L W 1,000mm D 500mm Ｈ 900mm
Please inquire in detail
